Servo Multi-turn Wire wound Potentiometer, model 4510-S
Download PDF
Media Gallery
FEATURES
ELECTRICAL CHARACTERISTICS
MECHANICAL CHARACTERISTICS

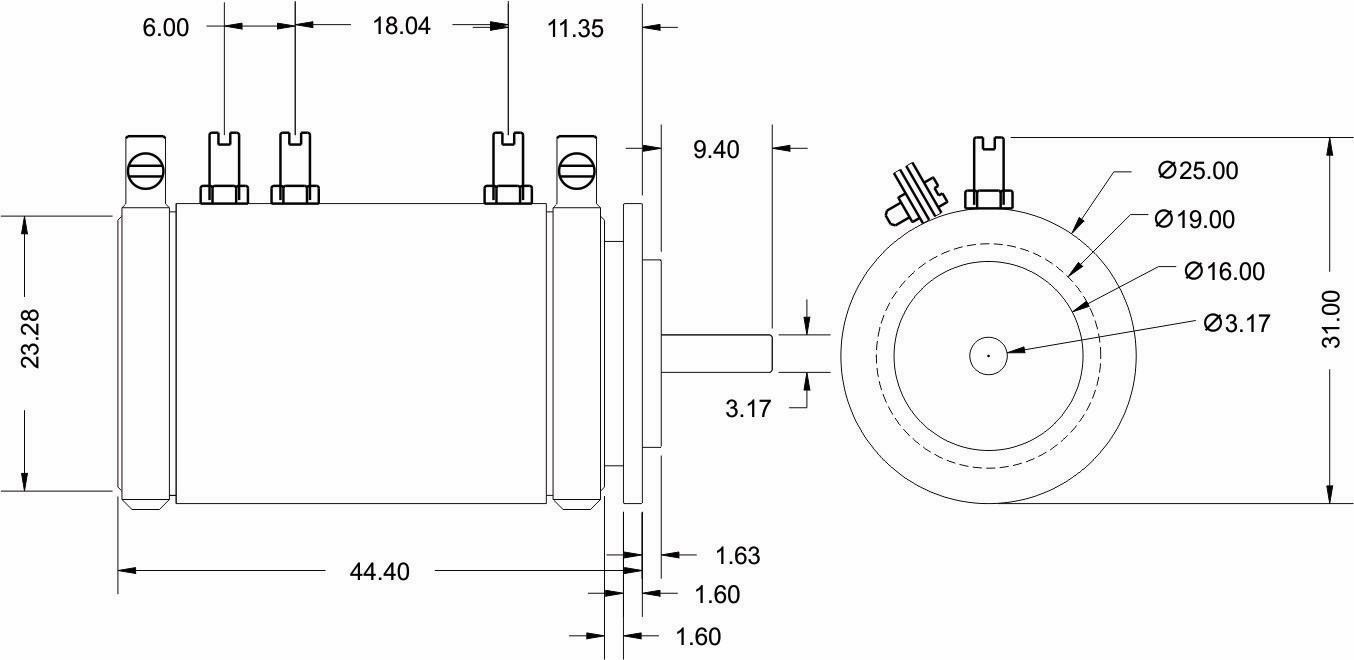

Schemetic
Different Shaft Diameters and Lengths Available.
Servo Mount for precise measurement.
Both sides ball bearing for smooth movement.
Std. Resistance Range
1K, 2K, 5K, 10K, 20K, 50K, 100KΩ
Power Rating
3 Watt @ 40 °C
Linearity
Standard ± 0.25%
Insulation resistance
1000 M Ω at 500 VDC
Maximum Working Voltage
250 VDC
Voltage proof
1500 VAC for 1 min. at sea level
Electrical Angle of Rotation
3600° + 10°/-0°
Resistance tolerance
Std.± 5%,other on request
End Resistance
2Ω or %Lin. Whichever is greater
Rotational noise (ENR)
100 Ohm
Shaft material
Stainless steel
Housing material
Radiation resistant material
Life cycle
1 million revolutions
Flange material
Aluminum
Connection type
Gold plated lugs
Weight
40 g
