| Std. Resistance Range | 50 to 30KΩ |
| Power Rating | 3 Watt @ 40 °C |
| Linearity | Standard ± 0.5%, others on request |
| Insulation resistance | 1000 M Ω at 500 VDC |
| Maximum Working Voltage | 500 VDC |
| Voltage proof | 3000 VAC for 1 min. at sea level |
| Electrical Angle of Rotation | 1080° + 10°/-0° |
| Resistance tolerance | Std. ± 5%,other on request |
| End Resistance | 2Ω or %Lin. Whichever is greater |

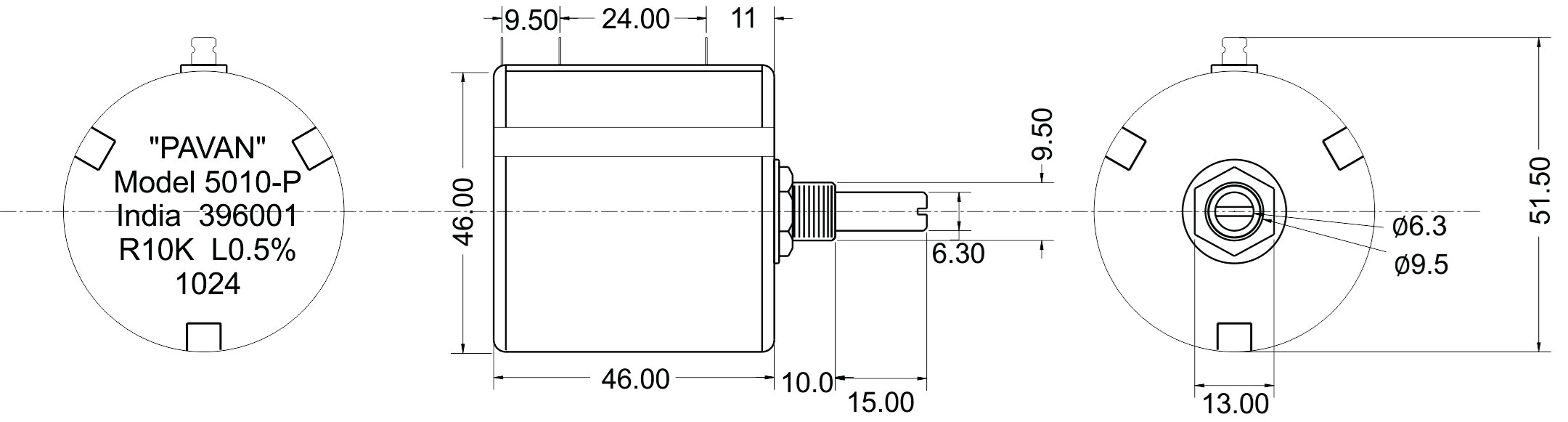

| Mounting | Bush mounting |
| Mechanical Angle of Rotation | 1080° + 10°/-0° |
| Temp. range | 0° to 70°C |
| Housing, bearing and back lid | Thermoset Plastic with Nickel plated brass bush |
| Spindle | Extruded Brass 10/15 mm |
| Terminals, Wiper Contact | Gold plated |
| Low TCR Resistance wire. Maximum TCR of ± 150 ppm/°C | |
