| Std. Resistance Range | 200 to 200K Ω |
| Power Rating | 5 Watt @ 40 °C |
| Linearity | Standard ± 0.5%, ± 0.25% on request. |
| Insulation resistance | 1000 M Ω at 500 VDC |
| Maximum Working Voltage | 250 VDC |
| Voltage proof | 750 VAC for 1 min. at sea level |
| Electrical Angle of Rotation | 7200° + 10°/-0° |
| Resistance tolerance | Std.± 5%, other on request. |
| End Resistance | 2Ω or %Lin. Whichever is greater |
| Mounting | Bush mounting |
| Mechanical Angle of Rotation | 7200° + 10°/-0° |
| Temp. range | 0° to 70°C |
| Housing, bearing and back lid | Bakelite housing with Nickel plated brass bush |
| Spindle | Extruded Brass 10/ 15 mm |

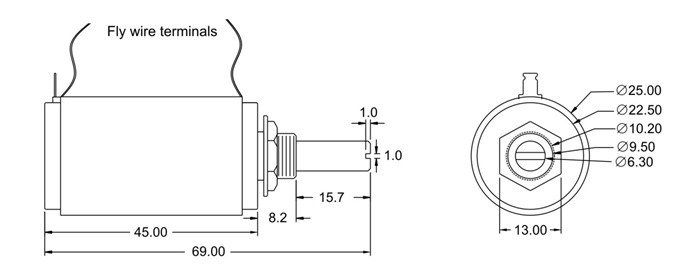

| Terminals, Wiper Contact | End terminals fly wire and variable terminal is Gold plated |
| Low TCR Resistance wire. | |
