3 Watt Multi-Gang Ten turn Potentiometer, model 3010-D/3010-T

Download PDF
product-nav-img
product-media-img
  • FEATURES
  • ELECTRICAL CHARACTERISTICS
  • MECHANICAL CHARACTERISTICS
  • MATERIAL SPECIFICATION
  • APPLICATION
  • Schemetic
  • Different Shaft Diameters and Lengths Available.
  • Multiple gangs possible.
  • Max. 1% conformity between the cups.
Std. Resistance Range 1K, 5K, 10K, 20K & 100KΩ
Power Rating 3 Watt @ 40 °C
Linearity Standard ± 0.5%,±0.25% on request
Insulation resistance 500 M Ω at 500 VDC
Maximum Working Voltage 250 VDC
Voltage proof 1500 VAC for 1 min. at sea level
Electrical Angle of Rotation 3600° + 10°/-0°
Resistance tolerance Std.± 5%,other on request
End Resistance 2Ω or %Lin. Whichever is greater
Conformity between cups Within 1%
Weight 40 gms.
IP rating IP50
Ganged cups 2, others on request
Life cycle 1 million cycles
Max. operating speed 300 rpm
Housing, bearing and back lid Reinforced Engineering Plastic with Nickel plated brass bush
Spindle Extruded Brass 15 mm
Terminals, Wiper Contact Special metals
Low TCR Resistance wire. Maximum TCR of ± 150 ppm/°C
  • Medical equipment
  •  Precise control of the Variable Frequency Drives
  •  AC drives and DC drives
  •  Process and energy control instrument
  •  Printing machines etc

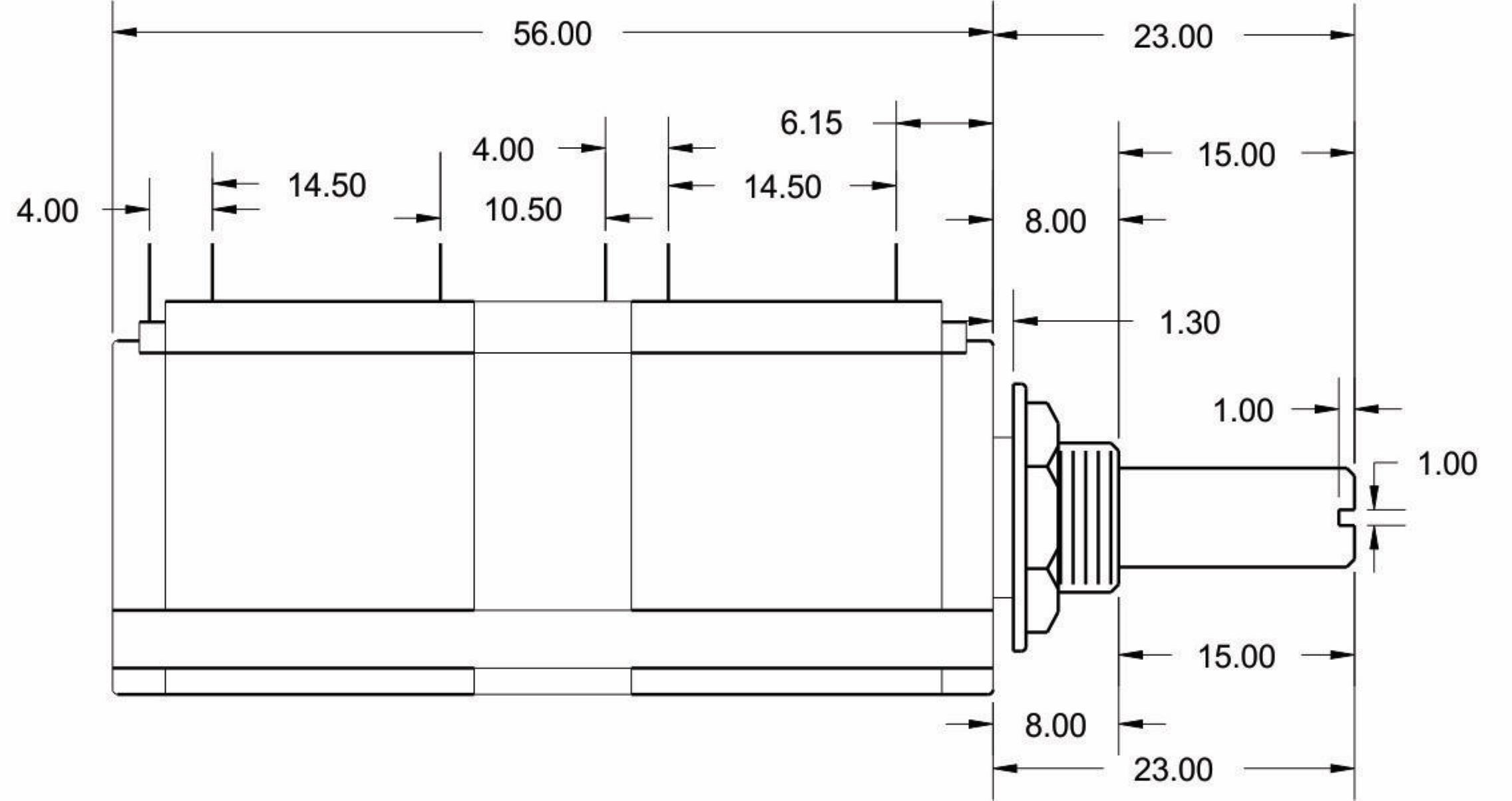

schematic-img
