Model: MAP-103 is Motorized POT with Constant RAMP UP and RAMP DOWN Speed.
Model: VSMP‐10 is Motorized POT with Variable RAMP UP and RAMP DOWN Speed.
| Std. Resistance Range | 100 to 100KΩ |
| Power Rating | 2/ 3/ 5 Watt @ 40 °C |
| LEDs | 1 for Power ON, 2 for Ramp up & down, 2 for End position |
| Auxiliary supply | 12/24 VDC, 110/ 230 VAC |
| Digital read out | % of wiper position/ resistance |
| Relay with one NC and one NO | 0.6 Amp @ 125 VAC or 2 Amp @ 30VDC or 0.6 Amp on end position |
Door Mounting: Cut-out of 92 x 92 mm

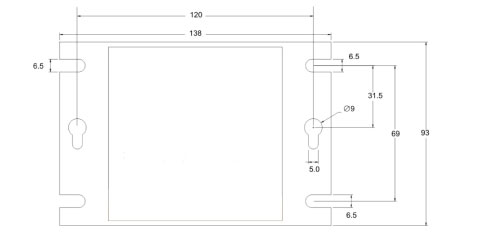

Wall Mounting: As per the Schematic diagram
Generator Synchronizing
Remote operation of VFDs
Synchronizing of multiple motors
