Draw wire sensor
Download PDF
ELECTRICAL CHARACTERISTICS
MECHANICAL CHARACTERISTICS

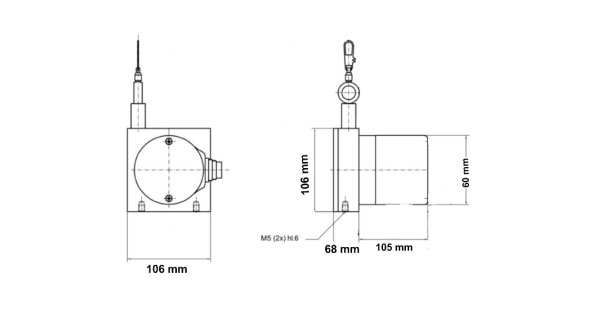

Schemetic
Electrical Travel
50/ 100/ 250/ 500/ 1000/ 1500/ 3000 mm
Sensing device
Potentiometer/ Encoder
Linearity
±0.15% of full scale
Repeatability
±0.15% of full scale
Power Supply
Upto 250 VDC
Output signal
Ratiometic output depending on device used
Housing Material
Aluminium
Maximum tightness
4N
Minimum pull-in force
2N
Sensing element
±100 PPM/ºC
