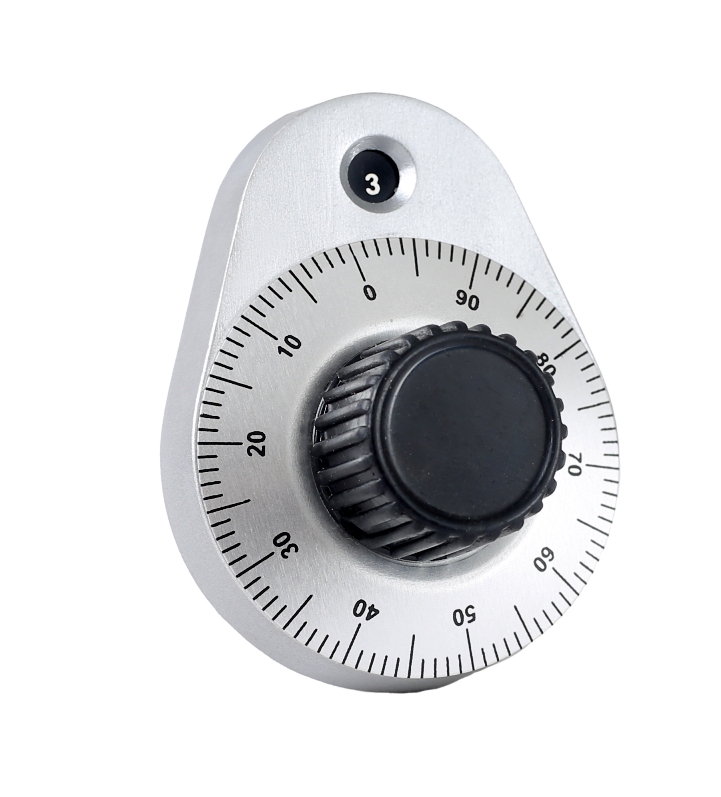

Turn indicating dial, Model 45-PD
Download PDF
Media Gallery
Media Gallery
MECHANICAL CHARACTERISTICS
TECHNICAL DETAILS

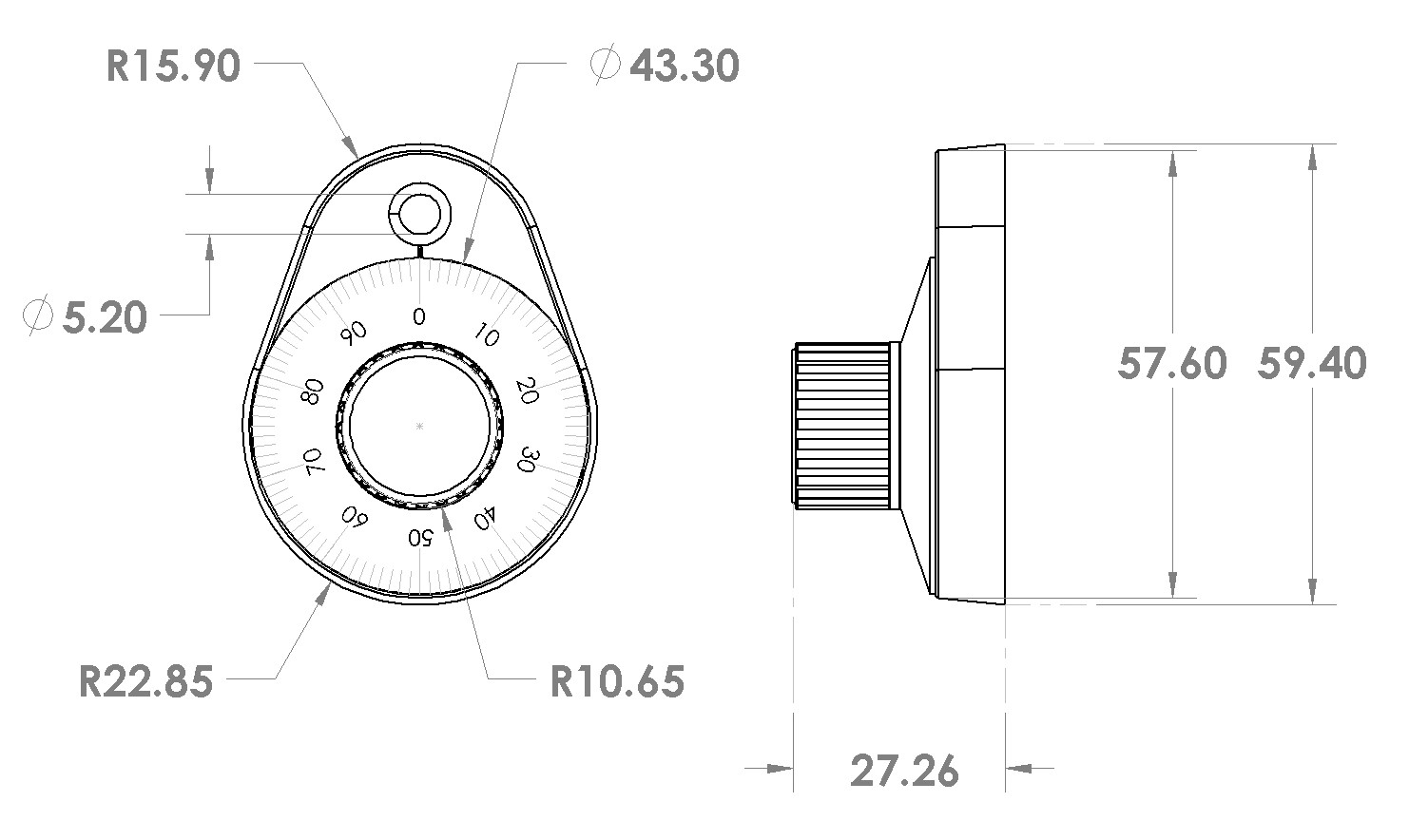

Schemetic
Model No.
45-PD
Main Scale
0 to 10
Vernier Scale
100 per Turn
Locking Brake
NO
Weight
48 gm
Set Screw
M3 Allen key Grub
Hex Key Size
1.5mm Hex
No Backlash
For Use With Precision Potentiometers Or Other Rotating Devices.
Easily Readable Main And Vernier Scale
Sturdy Metal design
